ams OSRAM OSLON® Compact PM Generation 2
ams OSRAM OSLON® Compact PM Generation 2 are compact lighting sources with isolated thermal pads for improved heat dissipation. The ams OSRAM OSLON Compact PM features a small z-tolerance of (+/- 35µm). The product family has brightness in combination with outstanding luminance.
Features
- Ceramic package
- UX:3 chip technology
- 120° (Lambertian emitter) typ. radiation
- Cx = 0.3130, Cy = 0.3220 acc. to CIE 1931 (white) color
- 3A corrosion robustness class
- AEC-Q102 qualified
- 8kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, class 3B) ESD
Applications
- Dynamic forward lighting

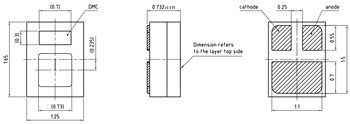

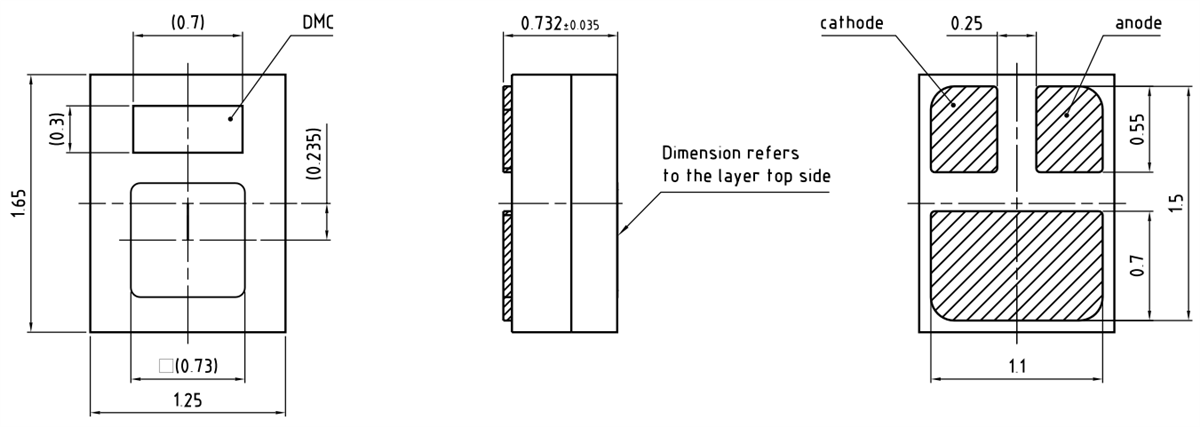

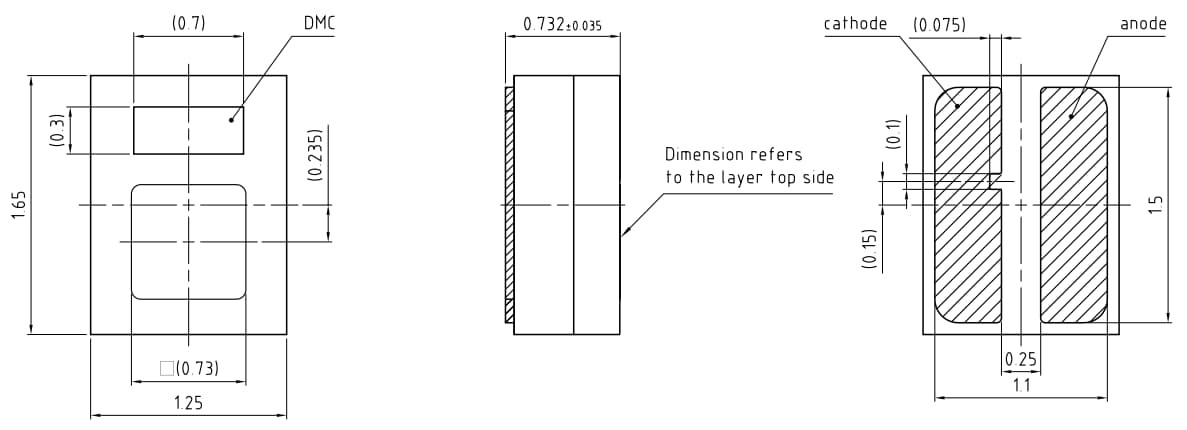

Dimensional Drawing
