Diotec Semiconductor TPSMA6L TVS Diodes

Diotec Semiconductor TPSMA6L Transient Voltage Suppressor (TVS) Diodes feature a low profile package and 600W peak pulse power (10µs/1000µs waveform). TPSMA6L diodes with the -AQ suffix are AEC-Q101 qualified. These TPSMA6L diodes feature a very fast response time and are compliant with RoHS, REACH, and conflict minerals. Diotec Semiconductor TPSMA6L TVS Diodes are suitable for over-voltage protection, ESD protection, free-wheeling diodes, commercial/industrial, and automotive-grade applications.

Features

  • Low profile package
  • 600W peak pulse power (10µs/1000µs waveform) dissipation
  • AEC-Q101 qualified
  • Suffix –AQ for AEC-Q101 qualification
  • Very fast response time
  • -50°C to 150°C junction temperature range
  • Compliant with RoHS, REACH, and conflict minerals
  • UL 94V-0 case materials
  • 260°C/10s solder and assembly conditions

Applications

  • Over-voltage protection
  • ESD protection
  • Free-wheeling diodes
  • Commercial grade

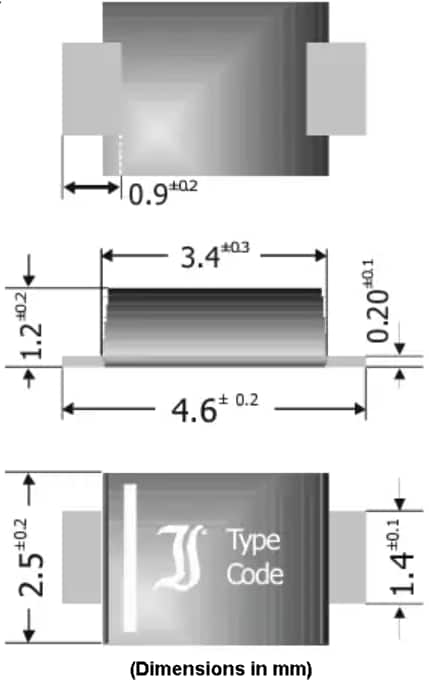

Dimensions Diagram

Mechanical Drawing - Diotec Semiconductor TPSMA6L TVS Diodes
