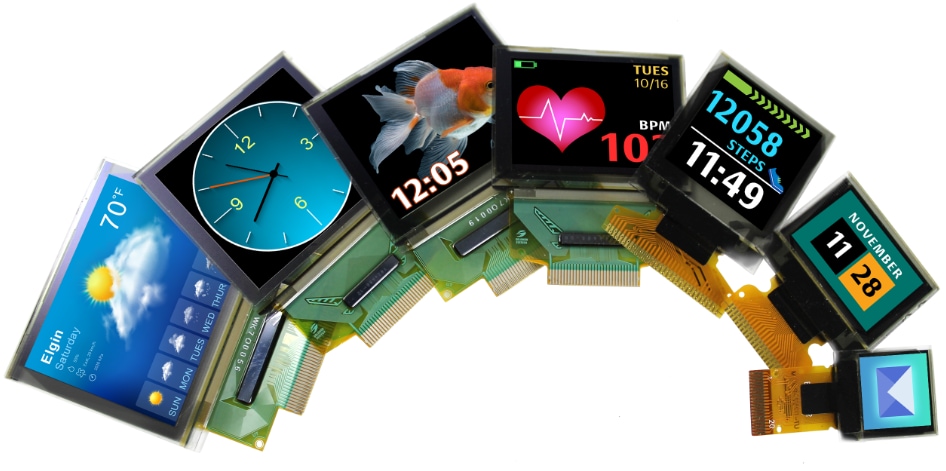

Newhaven Display Full Color OLED Glass Displays

Newhaven Display Full Color OLED Glass Displays are designed to provide an array of color options. These seven OLEDs are available in sizes from 0.6" to 1.91". Small OLEDs offer 65k colors, whereas large OLEDs offer 262k colors. These glass displays come with a high contrast rate, and the 1.69" full-color display boasts a 2,000:1 high contrast rate. The 0.6" to 1.5" glass displays boast 10,000:1.

The Newhaven Display OLED Displays feature no backlight, fast response time, wide viewing angles, and withstand harsh environments due to the display's extreme temperature ranges. These displays are ideal for smaller consumer wearables, handheld devices, small devices, and hard drives.

These displays come without a PCB, which allows customizing a board to fit smaller-scale applications and specific design requirements. The OLED Glass options are available in full-color graphic or blue 2x16 character display types. Contacting Newhaven Display can work to customize and add a PCB to the glass.

Features

  • Freedom to mount based on a design of an application
  • Freedom to design a circuit that’s suited for application and space
  • Provides a custom board if needed based on customer’s specifications
  • Seven total sizes
    • 0.6”, 0.95”, 1.1”, 1.27”, 1.5”, 1.69”, 1.8” and 1.91”
  • No backlight
  • High contrast ratio
    • 1.69" - 2000:1
    • 0.6" to 1.5" - 10,000:1
  • 10µsec refresh rate
  • Greater than 80° viewing angles
  • -40°C to 70°C operating temperature ranges
  • Engineered and assembled in Elgin, IL USA
  • RoHS compliant

Applications

  • Wearables
  • Handhelds
  • Small devices
  • Keyboards
  • Casino
  • Hard drives

Full-Color OLEDs

Newhaven Display Full Color OLED Glass Displays

Related Products

Newhaven Display Color OLED Arduino Shields

Ready for use with Arduino UNO and UNO SMD development boards, available in 1.27", 1.5" and 1.69".

Learn Moreacerca de Newhaven Display Color OLED Arduino Shields View Productsrelacionado con Newhaven Display Color OLED Arduino Shields

Newhaven Display Slim OLED Character Displays

Half the thickness of previous OLED displays with included logic on the board.

Learn Moreacerca de Newhaven Display Slim OLED Character Displays View Productsrelacionado con Newhaven Display Slim OLED Character Displays

Newhaven Display NHD-1 Full Color OLED Display Modules

262k colors/18-bit, rich black levels and a > 160-degree viewing area for superior visual qualities.

Learn Moreacerca de Newhaven Display NHD-1 Full Color OLED Display Modules View Productsrelacionado con Newhaven Display NHD-1 Full Color OLED Display Modules

Newhaven Display Color OLED Breakout Boards

Available for 0.6", 1.27", 1.45", 1.5", and 1.69" Color OLED display and features on-board circuit.

Learn Moreacerca de Newhaven Display Color OLED Breakout Boards View Productsrelacionado con Newhaven Display Color OLED Breakout Boards

Newhaven Display Pantallas de vidrio OLED a todo color de 1.8“ y 1.91”

Cuentan con una mayor resolución y un color vibrante sobre un fondo negro enriquecido.

Learn Moreacerca de Newhaven Display Pantallas de vidrio OLED a todo color de 1.8“ y 1.91” View Productsrelacionado con Newhaven Display Pantallas de vidrio OLED a todo color de 1.8“ y 1.91”

Videos

View Results ( 12 ) Page
N.º de artículo Hoja de datos Descripción Producto Color de iluminación Resolución Área de visualización (An x Al) Tamaño de módulo (An x Al x P) Corriente de suministro operativa Voltaje de alimentación operativo Brillo Ángulo de visualización
NHD-1.5-128128ASC3 NHD-1.5-128128ASC3 Hoja de datos Pantallas y accesorios OLED 1.5" Serial Color OLED 128x128 OLED Displays Full Color 128 x 128 28 mm x 28 mm 44.5 mm x 58 mm x 5.1 mm 85 mA 3.3 V 90 cd/m2 80 deg
NHD-1.27-12896UGC3 NHD-1.27-12896UGC3 Hoja de datos Pantallas y accesorios OLED Full Color OLED 128x96 pixels OLED Displays Full Color 128 x 96 26.71 mm x 20.28 mm 144 mA 3 V 80 deg
NHD-1.8-160128B NHD-1.8-160128B Hoja de datos Pantallas y accesorios OLED 1.8" Full Color OLED Glass OLED Displays 160 x 128 160 mm x 128 mm x 1.627 mm 39 mA 2.8 V 100 cd/m2 80 deg
NHD-1.8-160128UBC3 NHD-1.8-160128UBC3 Hoja de datos Pantallas y accesorios OLED 1.8" Full Color OLED Module OLED Displays 160 x 128 52 mm x 48 mm x 2.8 mm 200 mA 3.3 V 100 cd/m2 80 deg
NHD-1.91-176176B NHD-1.91-176176B Hoja de datos Pantallas y accesorios OLED 1.91" Full Color OLED Glass OLED Displays 176 x 176 59.8 mm x 39.5 mm x 1.627 mm 58 mA 1.8 V 80 cd/m2 80 deg
NHD-1.91-176176UBC3 NHD-1.91-176176UBC3 Hoja de datos Pantallas y accesorios OLED 1.91" Full Color OLED Module OLED Displays 176 x 176 58 mm x 48 mm x 5.1 mm 285 mA 3.3 V 80 cd/m2 80 deg
NHD-1.69-160128B NHD-1.69-160128B Hoja de datos Pantallas y accesorios OLED GRAPHIC DISPLAY OLED RGB 1.69" OLED Displays Red, Green, Blue 35.57 mm x 28.86 mm 39.9 mm x 34 mm x 1.6 mm 840 uA 1.65 V to 3.5 V 85 deg
NHD-1.5-128128UGC3 NHD-1.5-128128UGC3 Hoja de datos Pantallas y accesorios OLED Full Color OLED 128x128 pixels OLED Displays Full Color 128 x 128 28 mm x 28 mm 164 mA 3 V 80 deg
NHD-1.5-128128G NHD-1.5-128128G Hoja de datos Pantallas y accesorios OLED 1.5 IN Full Color OLED Glass OLED Displays RGB 128 x 128 26.855 mm x 26.864 mm 33.8 mm x 34 mm x 1.6 mm 33.4 mA 2.5 V 90 cd/m2 80 deg
NHD-0.95-9664G NHD-0.95-9664G Hoja de datos Pantallas y accesorios OLED 0.95 IN Full Color OLED Glass OLED Displays RGB 96 x 64 13.42 mm x 20.14 mm 22.2 mm x 25.7 mm x 1.45 mm 200 uA 2.8 V 100 cd/m2 80 deg
