Weidmuller maxGuard Electronic Load Monitoring

Weidmuller maxGuard Electronic Load Monitoring offer high-performance and potential distribution in one complete solution. These electronic load monitoring feature a 24VDC control voltage, increase safety against failure, and reduce space required on the terminal rail by 50%. The maxGUARD electronic load monitoring are fail-safe and maintenance-friendly control voltage distributions.

Features

  • Each ELM of maxGUARD is a solid-state overcurrent protector
  • Main voltage is applied in the Feed-In Module (FIM), which spreads the current through up and down cross-connectors to Electronic Load Monitors (ELM)
  • Reset of a trip condition can be made locally (push-button on the ELM)
  • ELM can be connected directly to a load or can increase the number of connections with terminal blocks and intermediated cross-connectors
  • The ELM can also inform their status (tripped or not) to the Feed-In Module (FIM)
  • 2A controlled Feed-In Module (FIM-C) can generate a remote alarm and can reset the ELM remotely
  • Can be used in a customised way

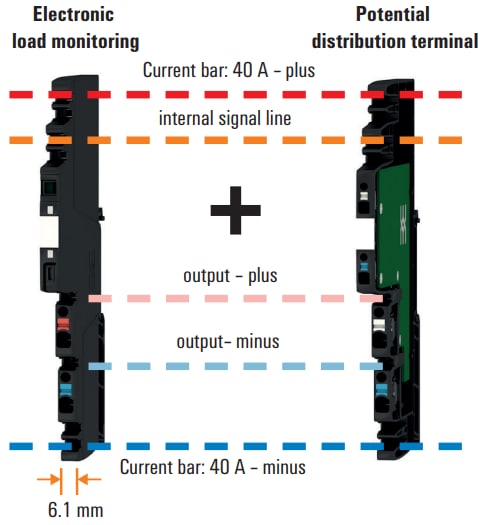

Combination of Load Monitoring and Potential Distribution

Weidmuller maxGuard Electronic Load Monitoring

Additional Resources

Videos

View Results ( 41 ) Page
N.º de artículo Hoja de datos Régimen de corriente Ancho Régimen de voltaje Temperatura de trabajo máxima Temperatura de trabajo mínima
2080360000 2080360000 Hoja de datos 6 A 6.1 mm 24 VDC + 85 C - 40 C
2080500000 2080500000 Hoja de datos 6 A 6.1 mm 24 VDC + 85 C - 40 C
2491290000 2491290000 Hoja de datos 4 A 6.1 mm 24 VDC + 85 C - 40 C
2081870000 2081870000 Hoja de datos 12.2 mm 24 VDC + 55 C - 25 C
2080410000 2080410000 Hoja de datos 12 A 96.5 mm 24 VDC + 85 C - 40 C
2080480000 2080480000 Hoja de datos 2 A 6.1 mm 24 VDC + 85 C - 40 C
2080490000 2080490000 Hoja de datos 4 A 6.1 mm 24 VDC + 85 C - 40 C
2080600000 2080600000 Hoja de datos 8 A 12.2 mm 24 VDC + 85 C - 40 C
2080650000 2080650000 Hoja de datos 10 A 12.2 mm 24 VDC + 85 C - 40 C
2081890000 2081890000 Hoja de datos 30 mA 12.2 mm 24 VDC + 55 C - 25 C
